SL ECLIPSE 400W BSW LED

Eclipse 400W BSW LED

Category: Moving Heads Tags: BSW, LED, Moving Head, Spot

Description

DESCRIPTION

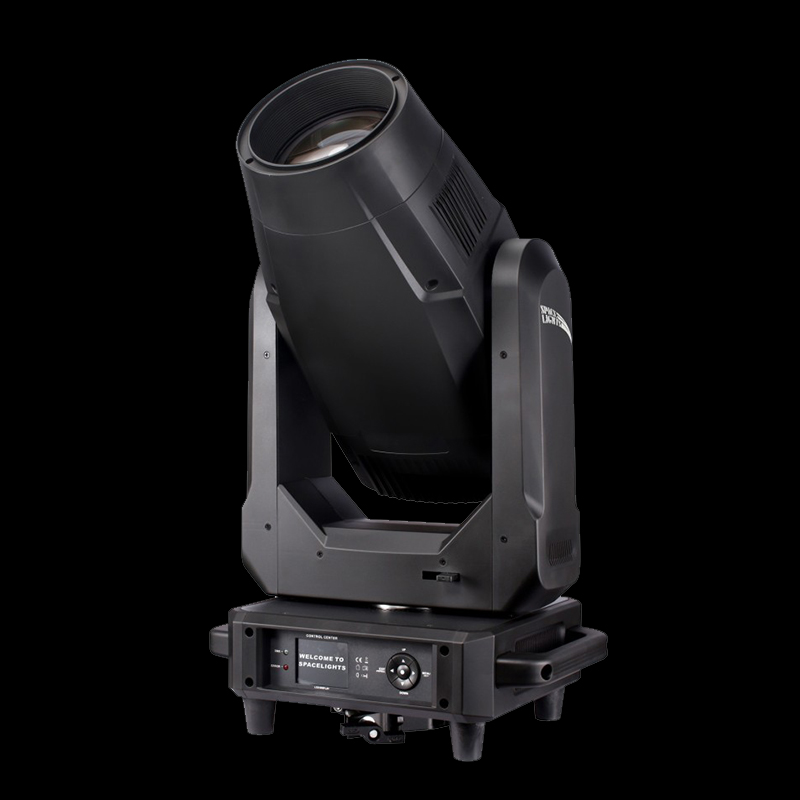

Eclipse is a 400w BSW LED.

SPECIFICATIONS

AC Power	100~240V AC , 50/60Hz
Rated Power	600W
Lamp	400W LED
Rated Life	20.000H
LUX	5m 127.000LX
Beam Angle	3°~45°
Color Temperature	7.000K
Angle Of Rotation	Horizondal Scanning 540°/ Vertical Ccanning 270°
Shutter	0~30HZ
Color	1 Color Plate (8 Colors +White Light) CMY, CTO
Pattern	1 Fixed Pattern Plate (12 Patterns+White Light)
Prism	8 Prism + Single Six Row Prism
Dimming	0-100% Linear Adjustment
Frost	0-100% Linear Adjustment
Focus	DMX Linear Adjustment
Control And Programming	DMX 512, RDM Master/Slave Syncronous Control Mode, Self-Walking Mode, Single Scene Mode
Channel	22CH / 26CH
Protection Rating	IP20
Housing	High Temperature Resistant Flame Retardant Plastics
AC Power In/Thru	Neutrik PowerCon
DMX Data In / Out	3-pin Locking XLR
Weight	23,2Kg
Ambient Temperature	-20°C ~40°C
