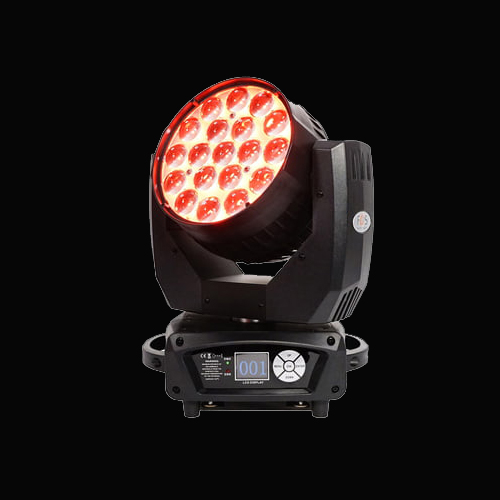

FOS LED WASH QUAD III

OPTICS

• Beam aperture: 6-50° (zoom)
• Unique optical system with 3 section individual LED control
• Three operating modes: wash, beam, FX effects

LIGHT SOURCE

• 19 RGBW 15w Osram LEDs
• Output Lumens: 200000lm /m
• White CT Emulation 2500-8000K
• Average lifespan: 50000 Hours

EFFECTS

• RGB Color Mixing
• Variable beam angle
• 3 independently controllable LED sections
• Pre-programmed color chases

DIMMER / STROBE

• Dimmer: 0-100% linear dimming
• Strobe effect (1-25 flash/sec), with instantaneous blackout

MOVEMENT RANGE

• Pan: 540° (16 bit) electric correction
• Tilt: 270° (16 bit) electric correction

SOFTWARE/HARDWARE

• LCD display for accessing the setup menu
• Main settings include pan/tilt reverse and speed, reset, motor adjust, etc.
• Information menu include lamp hours, software version, etc.

CONTROL

• Control modes: DMX 512, sound activated, auto mode
• Stand-alone mode and Master/Slave modes
• Choice of 16 and 24 DMX channel modes
• Data in/out: 3 pin and 5 pin XLR

POWER SUPPLY

• 100 to 240 Volts – 50/60Hz
• Power consumption:  450 Watt
• Powercon in

INSTALLATION

• Two side handles for transportation
• Omega clamps with fast-lock
• Safety cable (incuded)

OPERATING PARAMETERS

• Operating positions: all (device on floor or fixed to a support)
• Maximum permitted ambient temperature (Ta max): 45°C (113°F)
• Minimum permitted ambient temperature authorized (Ta min): -10°C (14°F)

BODY/SIZE/WEIGHT

• Dimensions : 200 x 220 x 380 mm
• Weight : 7,7kg
