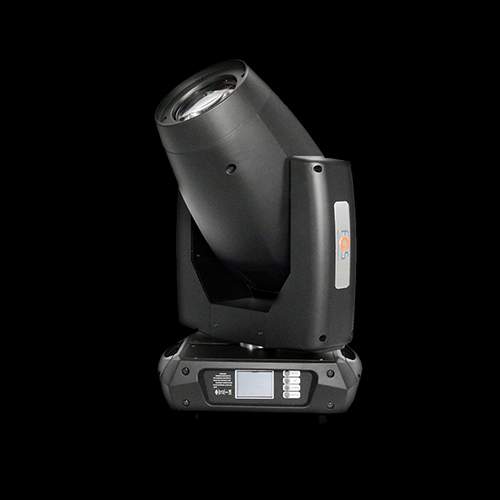

FOS 17R Hybrid CMY

Effects

• CMY color mixing system
• Colors:3 Color wheels with total of 14 colors + white
• Fixed Gobo wheel with 10 fixed Gobos, 3 beam reducers + open
• Rotating Gobo wheel with 9 interchangable, rotating and indexable dichroic gobos + open.
• Prism 1: 8 facet circular prism rotating in both directions at different speeds
• Prism 2: 16 facet linear prism rotating in both directions at different speeds
• The prisms have independent rotation and they can be combined together for an impressive optical effect.
• Zoom: parallel beam angel 2.5°- 32° change
• Wash effect : gradual insertion of the frost filter
• Focus: linear adjustment
• Dimmer : 0-100% linear adjustment
• Strobe : Double blade shutter (0.5-9 times/ second)

Control

• Standard DMX512: 21 / 23 / 26 channels
• Automatic and Master/ slave mode
• Main settings include pan/tilt reverse and speed, reset, motor adjust, etc.
• Information menu include lamp hours, software version, etc.

Dimensions

• Dimensions: 395 x 305 x 640 mm
• Weight: 20,9 Kg
