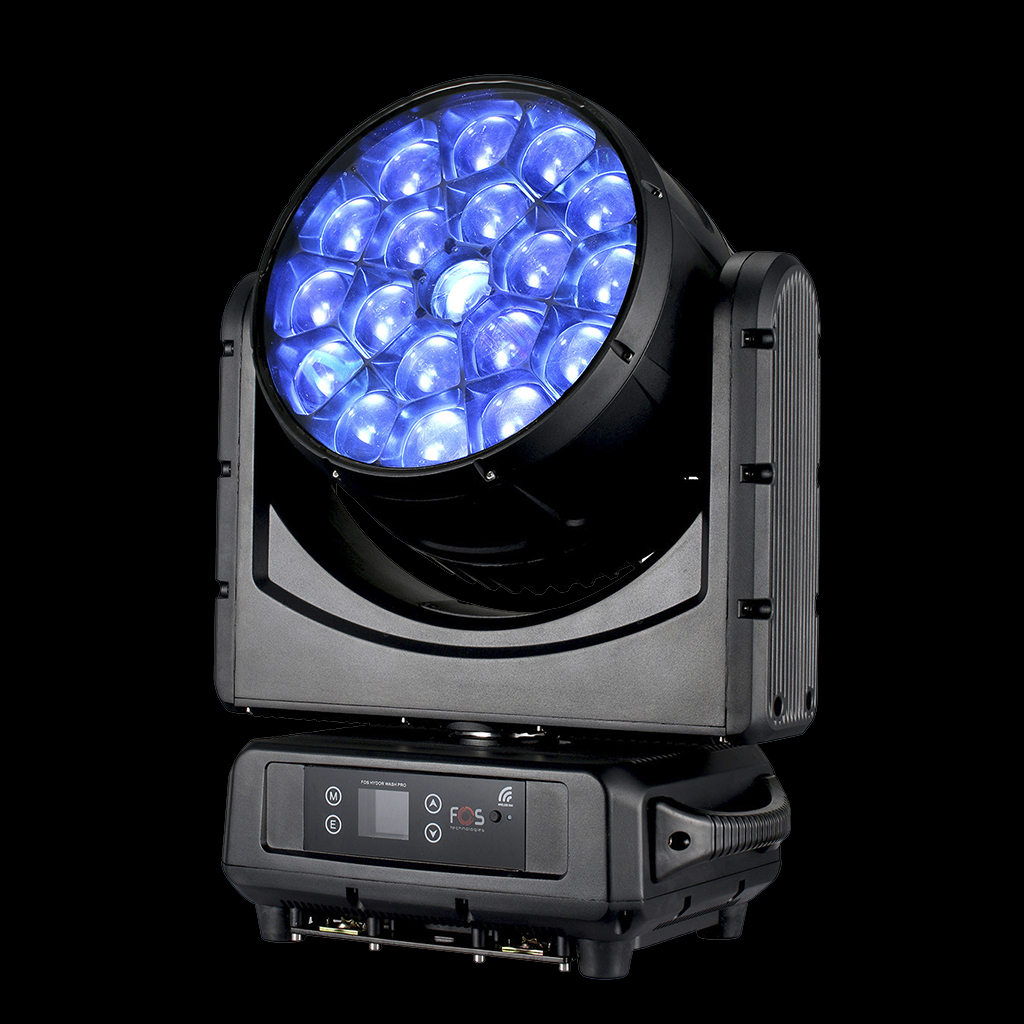

FOS HYDOR WASH PRO
Versatile IP65 Hybrid Wash/Beam Moving head, 19x40W
Description
DESCRIPTION
Introducing the versatile IP65 Hybrid Wash/Beam Moving Head, featuring 19x40W high-power RGBW 4-in-1 LEDs with individual LED pixel control. This advanced lighting solution offers a zoom range from 7 to 35 degrees and a 0-100% linear dimmer. With a CRI of 71 and a CTC of 10500K, it includes a bi-directional rotating front lens and linear CTO. Experience dynamic lighting effects with Beam, Wash, and FX (Kaleidoscope effects), supported by a 16-bit dimmer and macro colors. Equipped with Wireless DMX and RDM, it also features an intuitive LCD display with four buttons. Weighing 24kg, this moving head is designed for professional performance and reliability.
SPECIFICATIONS
OPTICS
- Beam aperture: 7-35° (zoom)
- Unique optical system with individual led control
- Three operating modes: wash, beam, FX effects
- Parallel beam consisting of an array of individually controllable micro-beams
LIGHT SOURCE
- 19 x 4 in 1 LEDs (RGBW), 40 Watts each.
- CRI : 71
- Average lifespan: 50000 Hours
EFFECTS
- RGBW colour mixing.
- Beam, Wash and multibeam effect.
- Lens rotation in both directions.
- Pixel control and effect macros.
DIMMER / STROBE
- Linear dimming and strobe effect up to 25 Hz.
- Adjustable speed stop/strobe effect (1-25 flash/sec), with instantaneous blackout
MOVEMENT RANGE
- Pan: 540° (16 bit) electric correction
- Tilt: 270° (16 bit) electric correction
CONTROL
- Control modes: DMX, Master/Slave, Auto, RDM and Wireless DMX.
- 16-bit dimmer/strobe up to 25 Hz.
- Choice of 6 DMX modes (21-92 DMX channels)
- Data in/out: 3 pin XLR
POWER SUPPLY
- 90 to 260 Volts – 50/60Hz
- Power consumption: 880 Watts
- Powercon in
OPERATING PARAMETERS
- Protection : IP65
- Maximum permitted ambient temperature (Ta max): +40°C (104°F)
- Minimum permitted ambient temperature authorized (Ta min): -10°C (14°F)
BODY/SIZE/WEIGHT
- Fixture size: 408 x 302 x 490 mm.
- Weight: 24.2 Kgs.
