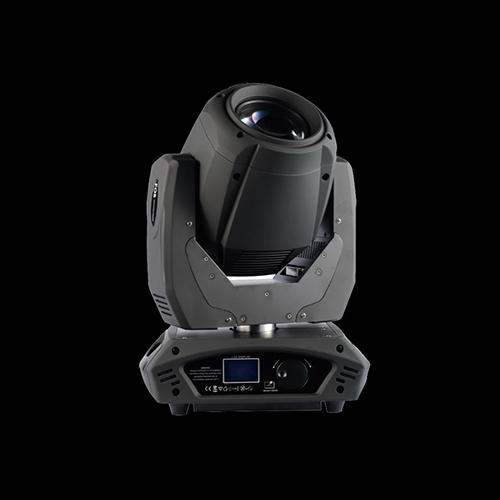

FOS BEAM 7R Hybrid

OPTICS

• Beam aperture: 0-3.8° High precision 3-layer optic glass lens

LIGHT SOURCE

• Osram 230w/7R type Output Lumens: 90000lm at 10m Color temperature: 8000K Average lifespan: 2000 Hours Lamp ON / OFF (DMX or manual)

COLOURS/GOBOS

• 13 colors + white, double rotation with rainbow effect 15 fixed gobos + white, Double rotation with rainbow effect, Gobo shaking function

FROST / DIFFUSION / PRISM

• Frost lens: wash effect 8 facet prism rotation

DIMMER / STROBE

• Dimmer: 0-100% linear dimming Strobe rate: 1-18Hz

FOCUS

• 2m – Infinity

MOVEMENT RANGE

• Pan: 540° (16 bit) electric correction Tilt: 270° (16 bit) electric correction

SOFTWARE/HARDWARE

• Wheel with push function and LCD display for accessing the setup menu Main settings include pan/tilt reverse and speed, reset, motor adjust, etc. Information menu include lamp hours, software version, etc.

CONTROL

• Control modes: DMX 512, sound activated, auto mode Stand-alone mode and Master/Slave modes
• Choice of 2 DMX modes (16/20 DMX channels) Data in/out: 3 pin XLR

POWER SUPPLY

• 90 to 260 Volts – 50/60Hz  Power consumption:  260 Watt Powercon in/out (cables included)

INSTALLATION

• Two side handles for transportation Omega clamps with fast-lock Safety cable (incuded)

OPERATING PARAMETERS

• Operating positions: all (device on floor or fixed to a support)   Maximum permitted ambient temperature (Ta max): 45°C (113°F)   Minimum permitted ambient temperature authorized (Ta min): -10°C (14°F)   Minimum usage distance: 3 m

BODY/SIZE/WEIGHT

• Aluminium structure with die-cast plastic cover
• 54 x 44 x 37 cm – 13kg

ACCESSORIES

• Double flight case with wheels

PACKING DETAILS

• Carton Box: 51 x 41 x 33 cm – 14.3 kg
• Double Flight case: 74 x 33.5 x 61.5 cm – 43.3 kg
